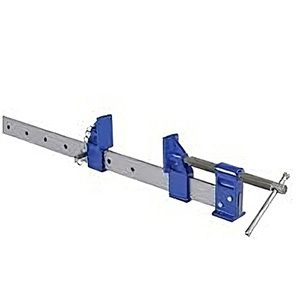

Bar Cramps are especially useful for clamping large section workpieces during fabrication, gluing in joinery, carpentry and boat building.
The bars are made from drawn steel with a section of 1.1/4″ x 1/4″ (32 mm x 6 mm). Malleable iron head and slides provide rigidity and strength even under heavy tension.
Both head and slide have a flat bottom allowing the bar to stand upright without support.
The head is fitted square to the bar with 1.1/2° – 2° taper for true parallel clamping action Main screw and handle are made from high-grade steel and have a blackened finish for increased resistance to corrosion.
The screw has rolled Acme threads that impart extra strength and are wear resistant Throat Depth: 2″ (50 mm) Width of Clamp Face: 1.3/16″ (30 mm)
